GitHub Contribution Display for Android

Transform your old Android device into an always-on GitHub contribution tracker.

View on GitHub Download APK Sponsor

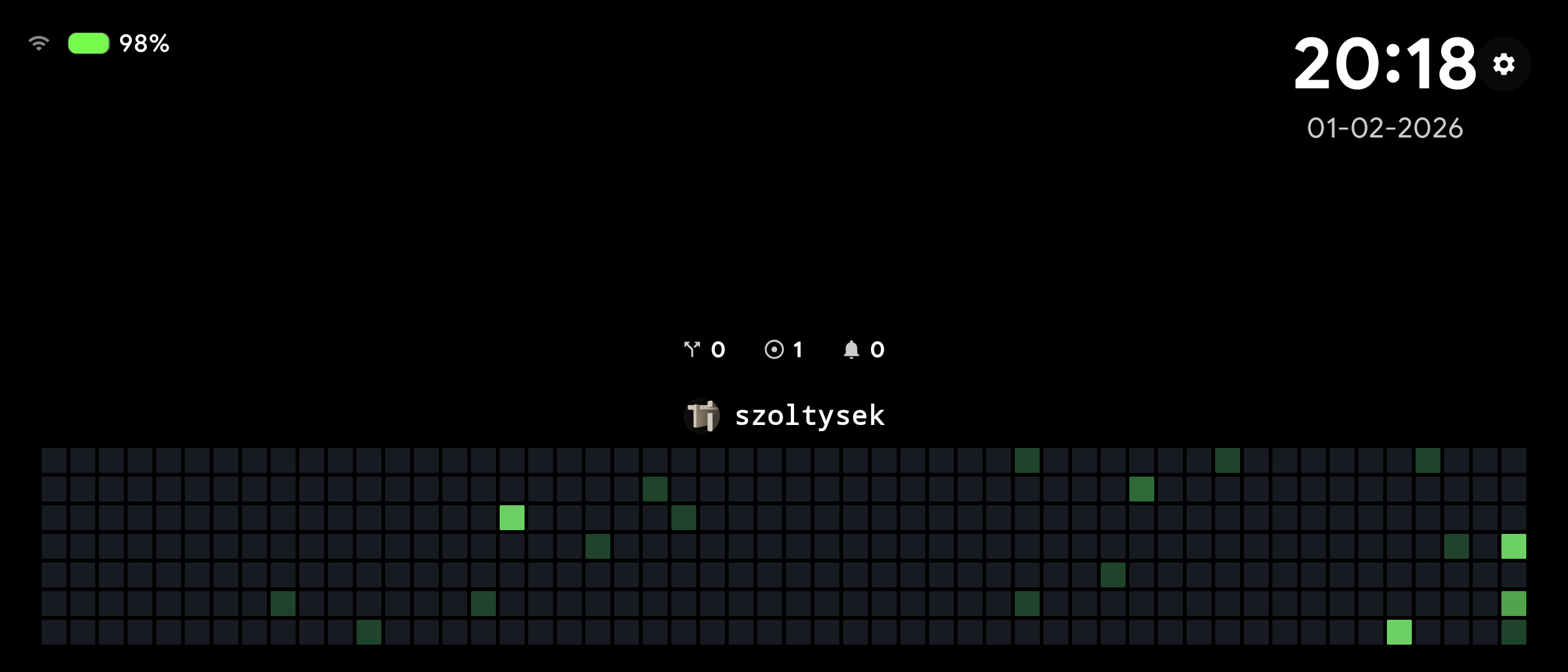

GitClock Dashboard - Fullscreen Landscape Mode

GitClock running in fullscreen Landscape Mode

Overview

This is a dedicated dashboard application that repurposes your Android device into an always-on GitHub contribution tracker. It uses the GitHub GraphQL API to fetch your real-time stats and visualizes them in a beautiful, OLED-friendly interface, providing a premium desk accessory experience without requiring a dedicated complex hardware build.


Designed for: Secondary/Old Android Phones (OLED screens recommended)
Compatibility: Android 12L and newer

My testing configuration: Sony Xperia 5 II • Android 15 • OLED 2560x1080

Main Features

The app automates the process of:

  1. Keeping the screen alive efficiently (WakeLocks).
  2. Fetching data from GitHub (Contributions, Issues, PRs) every minute.
  3. Rendering a pixel-perfect contribution graph using Jetpack Compose.
  4. (BETA) Hosting a local Web Server to allow remote layout configuration from your PC.

The result is a seamless, set-and-forget desk clock that keeps you motivated to code.

Prerequisites

  • Hardware: Android Phone or Tablet (OLED screen preferred for "True Black" mode).
  • Software:
    • Android 12L or higher (due to Material You theming).
    • (Optional) GitHub Classic Token for private repository tracking.
  • Network: Active WiFi connection.

Setup

Installation

You can grab the latest APK from the Releases page.

Build from Source:

# Clone the repo
git clone https://github.com/terminal-index/gitclock.git

# Open in Android Studio and hit Run (Shift + F10)

Initial Configuration

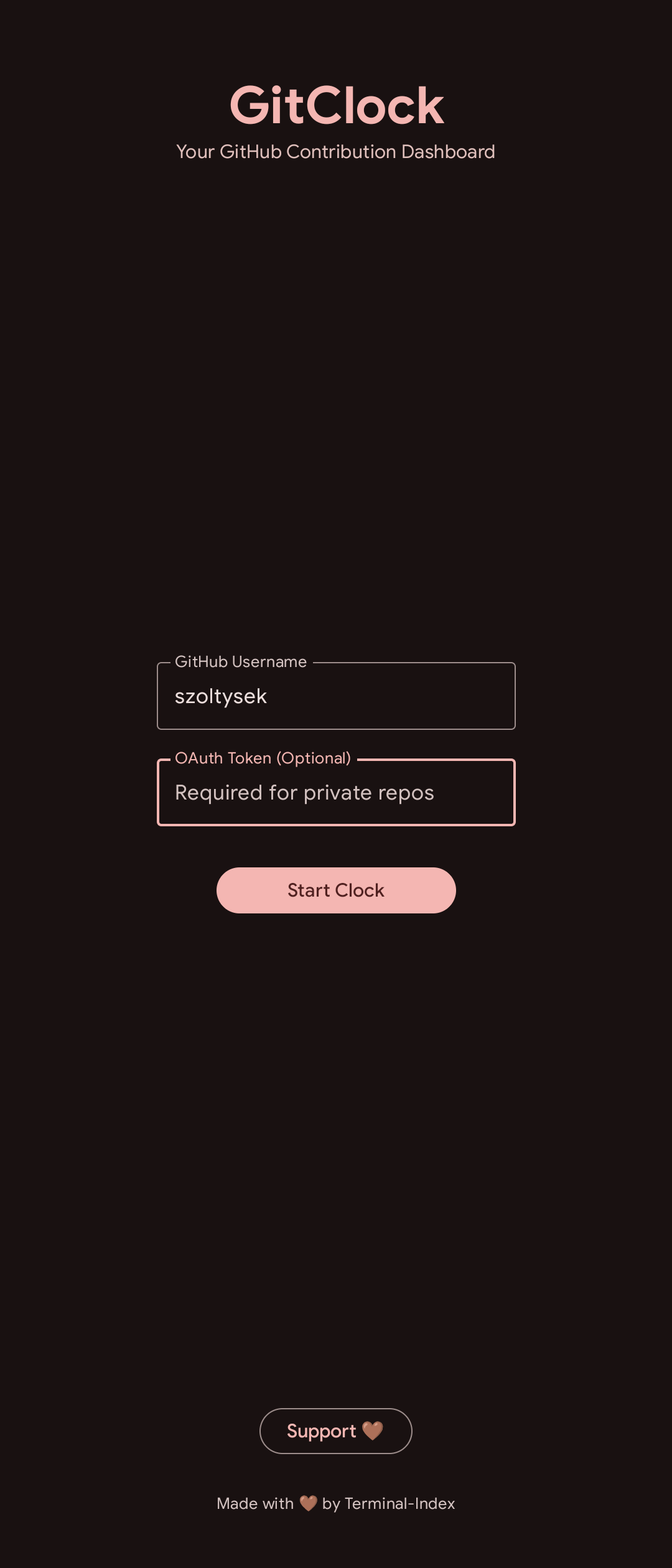

GitClock Setup Screen
  1. Launch the app.
  2. Permissions: Grant Notification permissions (required for foreground service to keep app alive).
  3. Auth:
    • Enter your GitHub Username.
    • (Optional) Enter OAuth Token if you want to see stats from private repos.

Web Editor (Remote Layout Editor)

GitClock features a unique Remote Layout Editor. Instead of fumbling with touch controls on a small screen, you customize the UI from your desktop.

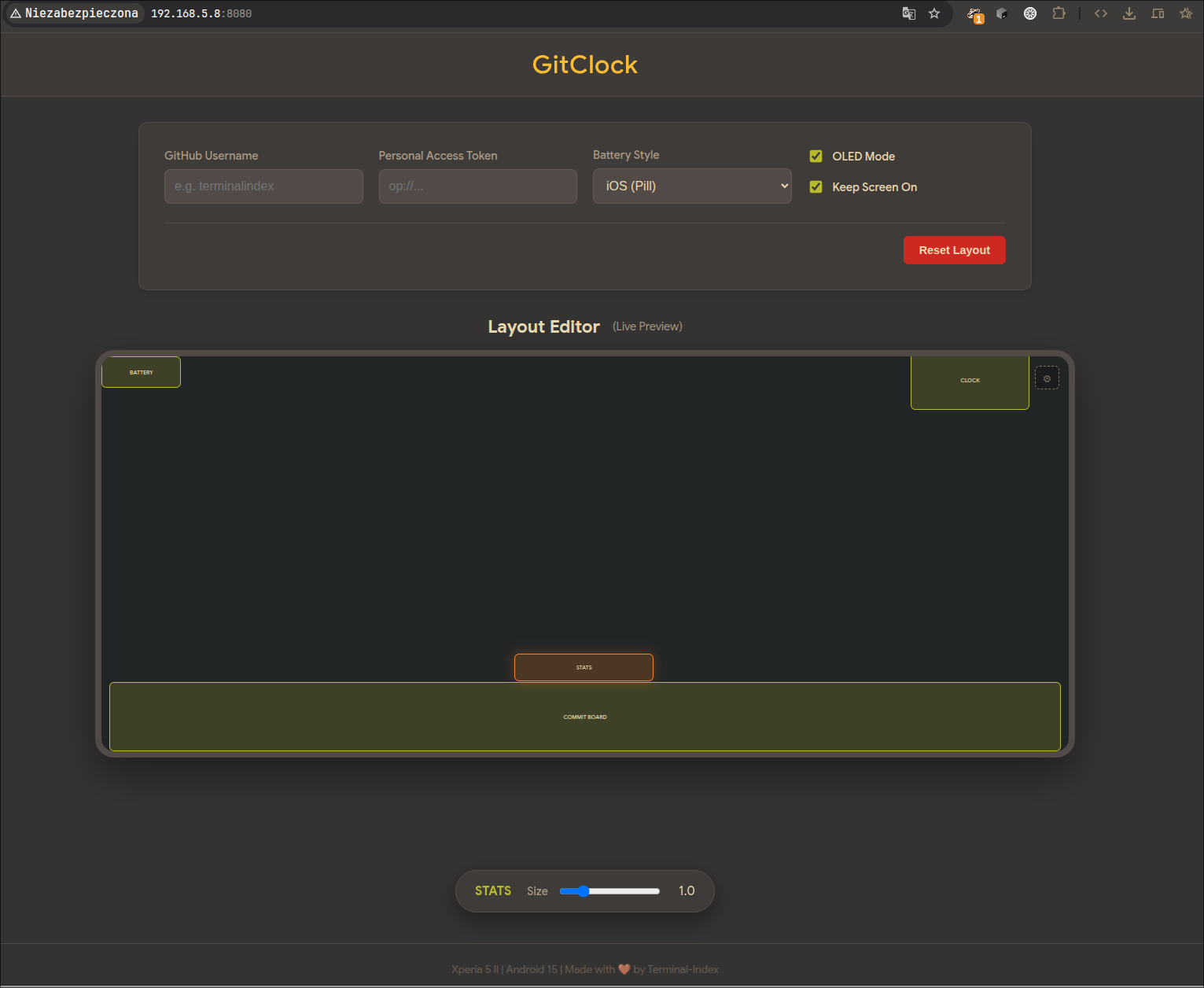

GitClock Web Editor Interface

Drag and drop interface for remote layout customization

How to Use

  1. Go to Settings (Gear Icon) → Enable Remote Server.
  2. Note the IP address displayed (e.g., 192.168.1.15:8080).
  3. Open that URL in your PC browser.
  4. Drag and Drop components to rearrange them. Changes appear instantly on the phone!

Architecture Explained

The Web Server

Feature in early BETA Stage. Do not expect it to work fine. The app runs an embedded Ktor server (WebServer.kt) on port 8080.

  • It serves a static HTML/JS frontend to your browser.
  • It uses a WebSocket or REST endpoints to sync coordinates between the browser canvas and the Android Jetpack Compose state.
  • Why? Because editing complex layouts on a touch screen is annoying. Mouse control is precise.

Data Fetching Strategy

We use a hybrid approach in GitClockRepository.kt:

  1. Public Data: Fetches from github-contributions-api.jogruber.de (fast, no token needed).
  2. Private Data: If a token is provided, we switch to GitHub GraphQL API (viewer { contributionsCollection ... }) to get accurate counts including private commits.

OLED Protection

To prevent burn-in on OLED screens:

  • True Black Background: Pixels are turned off (#000000).
  • Pixel Shift: (Planned/WIP) Elements slightly nudge their position every few minutes to prevent static image retention.

Known Issues

⚠️ 1. App Killed by System (Samsung/Xiaomi/Huawei)

Issue: The clock works for a few hours and then the app closes.

Symptoms:

  • You look at the phone and it's on the home screen.
  • Stats stopped updating.

Root Cause: Aggressive battery management in custom Android skins kills background/foreground services to "save battery".

Workaround:

  • Lock the app in the "Recents" view.
  • Go to Settings → Battery → Exclude GitClock from optimizations.
  • Check dontkillmyapp.com for your specific device.

⚠️ 2. GitHub Rate Limiting

Issue: Data stops updating, graphs disappear.

Symptoms:

  • Graph becomes empty.
  • Error logs show HTTP 403.

Root Cause: Unauthenticated requests to GitHub are limited to 60 per hour. If you have many widgets or refresh too often, you hit the cap.

Solution: Add a Personal Access Token in settings. This increases your limit to 5,000 requests per hour.

Contributing

If you discover improvements or solutions to known issues, please open an issue to discuss them or submit a Pull Request! All contributions are welcome.

Check out our Contributing Guidelines for more details.

Support My Work

If this project helps you stay productive, consider supporting my work (and energy drink consumption ☕) - especially since I'm a student at SUT (Silesian University of Technology):

License

It's MIT! See the LICENSE file for details. You can do whatever you want with it, just don't blame me if something breaks. I am not responsible for any damage you may cause to your device. You are on your own. Sorry :C
